multitens-main

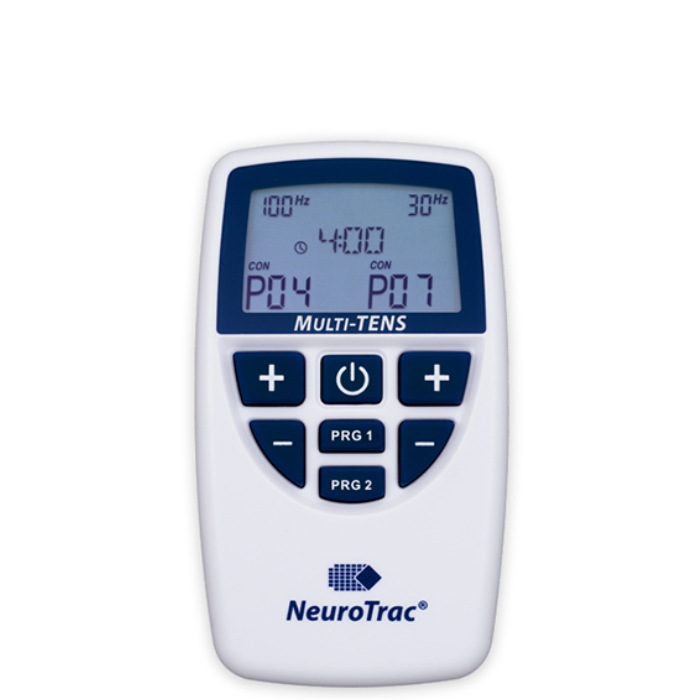

NeuroTrac® MultiTENS

Category:

Product Description


  • Digital Dual channel TENS and NMS device for Pain Relief and muscles rehabilitation.

    • Run 2 programmes at once! Ability to run two different TENS programmes at the same time, which allows you to run a combination of high and low frequency pain relief treatments on two areas at the same time. For example, you can use channel 1 to release pain relieving endorphins in the area of where the pain occurs. At the same time, use channel 2 for triggering the pain gate mechanism, placing your electrodes on the meridian near the vertebra. Endorphins and gate mechanism are targeted with different combinations of stimulus at the same time; this is where MultiTENS is very useful.
    • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
    • Keypad with bigger buttons for ease of use.
    • Multiphase custom programmes: Up to 5 phases can be configured for each of the three custom programmes. The custom programmes feature a simple setup of one phase only or anadvanced setup of up to 5 phases.
    • Comprehensive Statistics: The statistics are backed up by an internal calendar system. When locked, the unit record up to 5sessions daily for up to 60 days. An easy to use menu system allows the therapist to review the statistics to ensure that the patient is using the unit correctly.

    Model number: C6V350. This product is available through selected distributors who are able to provide training and support.

    • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current, Constant current, Max voltage: 180Volts +10/-30V
    • Modes: Continuous, Burst, Modulated and NMS (Work/Rest stimulation)
    • Parameters: 0-90mA, 2-200Hz, 50-450μS
    • 13 Pre-set TENS programmes
    • 4 Pre-set NMS programmes
    • 3 Custom programmes to set up your own treatment
    • Lock mode function to measure the home compliance (mA and time used)

    Physical dimensions: 119.2 x 69 x 28.7 mm

    Weight: 0.07KG without battery, 0.1KG with battery.

    Environmental Conditions for use:
    +5 to +40 degrees Centigrade. 15-90% Humidity.

    Environmental conditions for storage & transport:
    -25 to +70 degrees Centigrade. 15-90% Humidity.

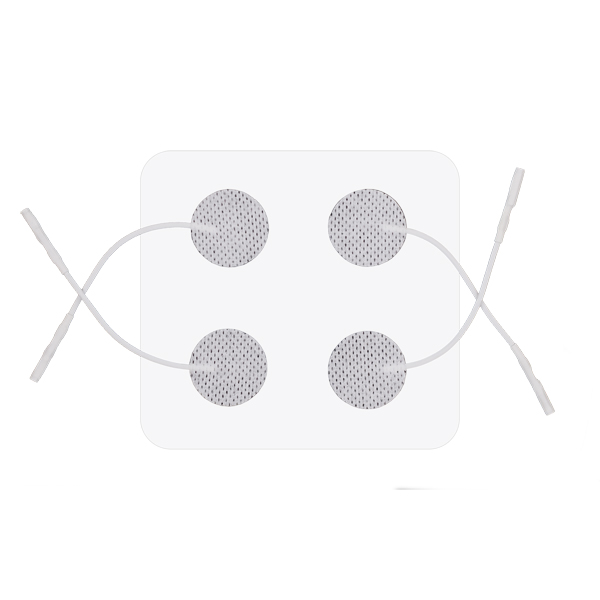

  • Skin electrodes: round 25 mm

    electrodes-vs2
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 25 mm dia – round
    • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

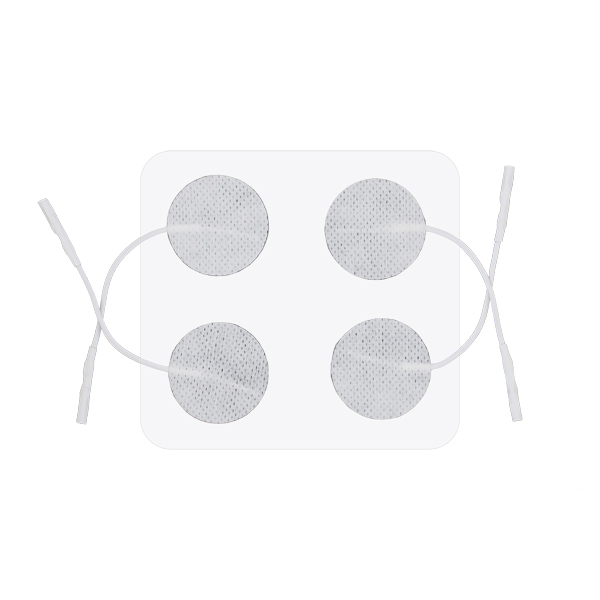

    Skin electrodes: round 30 mm

    electrodes-vs30
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 30 mm dia – round
    • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 50 mm

    electrodes-vs50
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 mm dia – round
    • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, as alternative to popular square shape of 50x50mm
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 50 x 50 mm

    electrodes-vs5050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 x 50 mm – rectangular
    • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, this size is the most popular
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

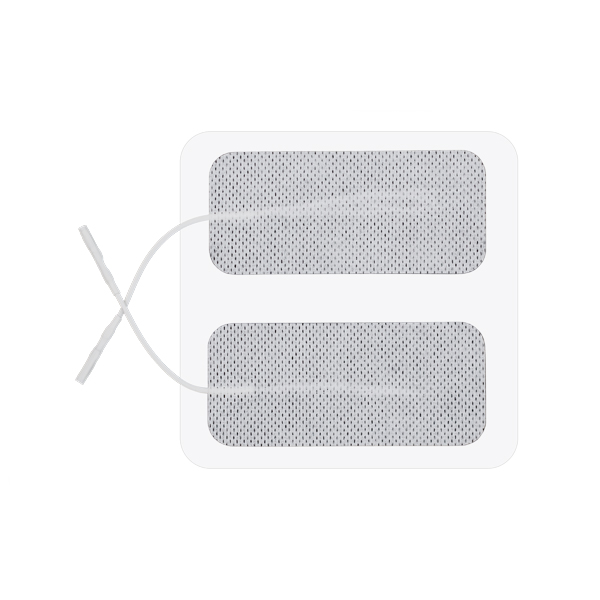

    Skin electrodes: 90 x 40 mm

    electrodes-vs9040
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 40 mm – rectangular
    • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

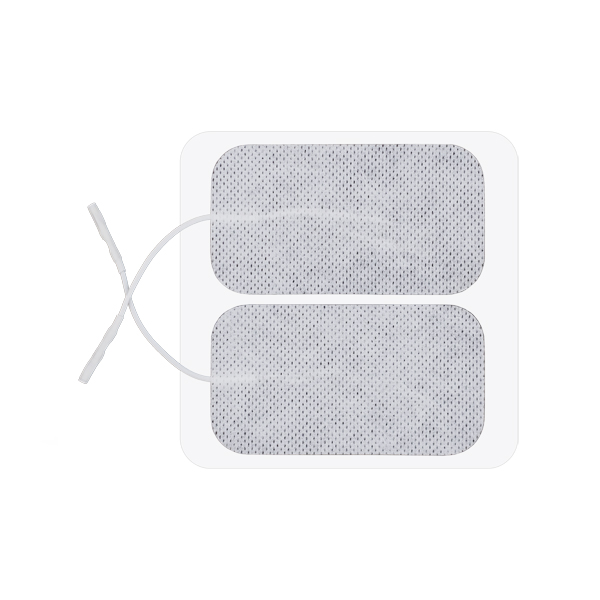

    Skin electrodes: 90 x 50 mm

    electrodes-vs9050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 50 mm – rectangular
    • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

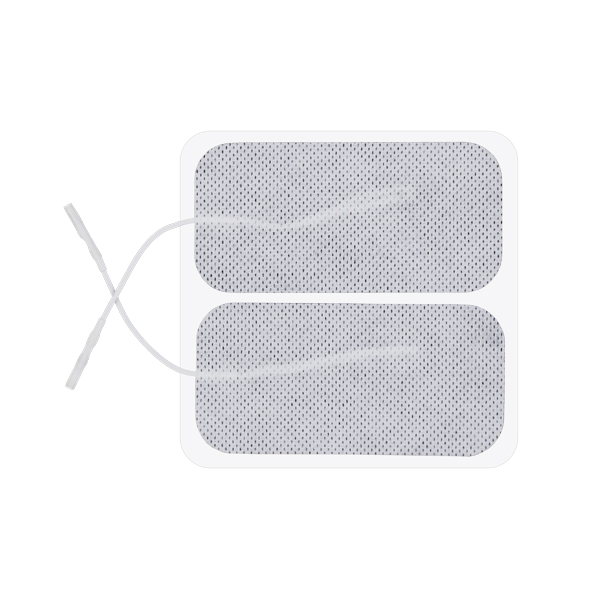

    Skin electrodes: 100 x 50 mm

    electrodes-vs10050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 100 x 50 mm – rectangular
    • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Lead wire – dual conductor

    wire-lw102-7169
    Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

    • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.25 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free
