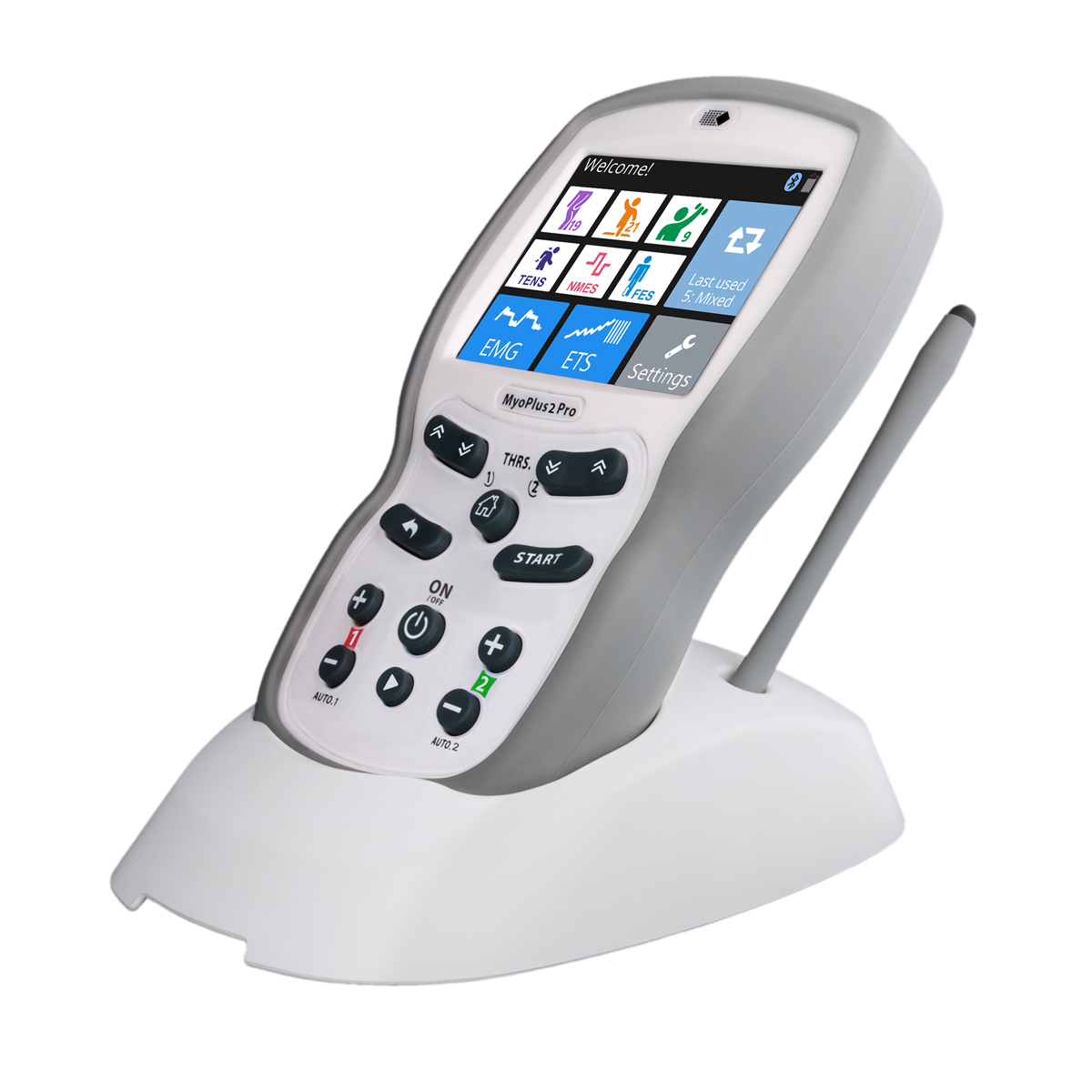

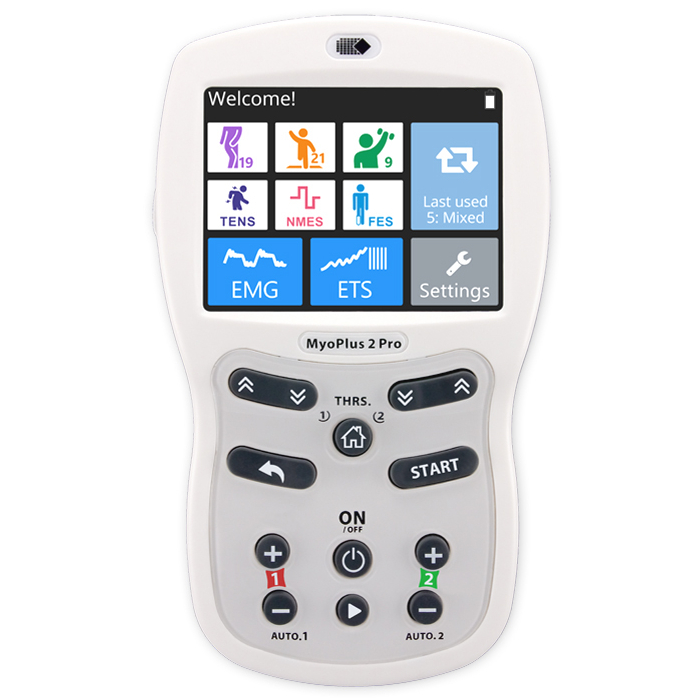

NeuroTrac® MyoPlus 2 Pro

New and Improved touch-screen with full colour display. The new user friendly interface makes it a self-explanatory unit with the interactive learning on the go, including electrode placement, running EMG graph as well as many other helpful tools.

Category:

Product Description

    • New and Improved touch-screen with full colour display. The new user friendly interface makes it a self-explanatory unit with the interactive learning on the go, including electrode placement, running EMG graph, EMG biofeedback Games and Templates as well as many other helpful tools.
    • Pre-set programmes for incontinence treatment, sports and muscular development, neuromuscular rehabilitation.
    • Designed for Physiotherapist in mind to be used as a portable tool. Suitable as a personal trainer for in-clinic or home use (under guidance).
    • 2 channel EMG (Biofeedback) combined with 2 channels of NMES (stimulation).
    • 2 channel ETS (EMG triggered stimulation) with stimulation on 2 channels.
    • Simple single-phase or multiphase operation: multiphase allows EMG/ETS/STIM to be combined in one programme.
    • Multilingual LCD screen and voice prompts for Biofeedback.
    • Manual and Automatic threshold control.
    • EMG Biofeedback between stimulation (muscle activity and tiredness indication when using muscle stimulation).
    • Stand alone device or used in conjunction with established multilingual software.
    • Up to 10 meters of wireless connection for NeuroTrac PC Software.
    • For home users: Produces and prints (with the optional PC Software) the comprehensive patient progress reports on a day to day basis providing average readings (2 channels) on work/rest, peak, onset and muscle release times, work and rest deviations and the average mA current.
    • Used as a learning tool for both patient and clinician with emphasis on improving treatment techniques in the use of EMG and Neuromuscular stimulation.

    Model number: MYO220P. This product is available through selected distributors who are able to provide training and support.


  • EMG (Biofeedback)

    • Dual channel EMG
    • EMG Range: 0.2 to 2000 μV RMS (continuous)
    • Sensitivity: 0.1 μV RMS
    • Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
    • Selectable Bandpass filter – 3db Bandwidth,
    • a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% – Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% – Reading above 235 microvolts
    • b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
    • Notch filter: 50 Hz (Canada 60Hz) – 33 dbs (0. 1% accuracy)
    • Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
    • Work / Rest periods: 2-99 seconds
    • Number of Trials: 2-99



    STIM (Neuromuscular Stimulation)

    • Dual channel Stimulator
    • Amplitude: 0-90 mA into 500 Ohm load – actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms load the maximum will be limited to 50 mA.
    • Type: Constant current, maximum output voltage 70 Volts +5 / -10 Volts
    • Waveform: Symmetrical, rectangular,
    • bi-phasic with net zero DC current
    • Pulse width selection: 50-450 μS (2% accuracy)
    • Pulse rate selection: 2-100 Hz (2% accuracy)
    • Work / Rest periods: 2-99 seconds
    • Time 1 – 99 minutes
    • Ramp up time: 0.1 – 9.9 seconds
    • Preset and user programmable treatment Programs
    • Automatic output shut off with detection of open electrode above 0.5 mA



    Battery: 4 x 1.5V AA. Low battery indication at 4.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately! The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 1 minute, when in stimulation mode (home screen) and all channels are 0mA.

    Expected average battery set life [of standard 800 mAh, alkaline]:
    a. MyoPlus 2: 12-16 hours in STIM, 25 hours in EMG mode.
    b. MyoPlus 4: 8-16 hours in STIM, 25 hours in EMG mode.

    Environmental Conditions for use: +5 to +40 degrees Centigrade. 15-90% Humidity.

    Environmental conditions for storage & transport: -25 to +70 degrees Centigrade. 15-90% Humidity.

    Physical dimensions: Length 150 mm, Width 89 mm, Depth 35 mm.

    Weight: MyoPlus 2 device: 0.16 Kg (without batteries).

  • Skin electrodes: round 25 mm

    electrodes-vs2
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 25 mm dia – round
    • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 30 mm

    electrodes-vs30
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 30 mm dia – round
    • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 50 mm

    electrodes-vs50
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 mm dia – round
    • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, as alternative to popular square shape of 50x50mm
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 50 x 50 mm

    electrodes-vs5050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 x 50 mm – rectangular
    • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, this size is the most popular
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 40 mm

    electrodes-vs9040
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 40 mm – rectangular
    • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 50 mm

    electrodes-vs9050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 50 mm – rectangular
    • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 100 x 50 mm

    electrodes-vs10050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 100 x 50 mm – rectangular
    • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Lead wire – dual conductor

    wire-lw102-7169
    Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

    • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.25 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free

    Lead wire – REF

    wire-lw102-7050
    Single conductor Reference lead wire for EMG Biofeedback

    • Re-order code: LW102 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.00 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free

    Vaginal Probe– PR-02A-2

    vaginal probe
    Vaginal electrode for Pelvic floor electrical stimulation or EMG Biofeedback

    • Terminations: for 2mm diameter pins
    • Dimensions: length 76 mm, diameter 28 mm
    • Weight: 30g
    • cable length: 20cm
    • CE Marked

    Materials & Specifications

    • Medical Grade Plastic
    • Gold plated electrodes to eliminate nickel intolerance
    • Latex free
