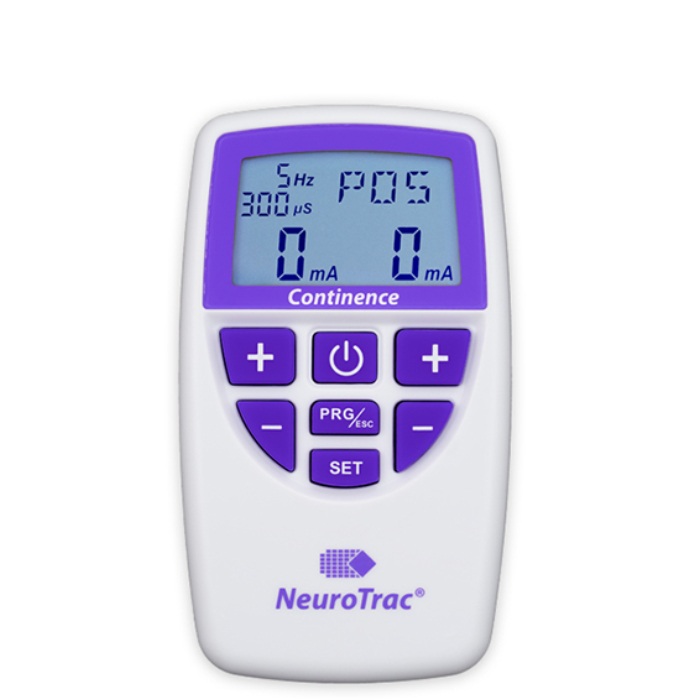

NeuroTrac® Continence

Category:

Product Description

    • Digital Dual Channel Stimulator (NMES)used to treat urinary incontinence by sending a mild electric current to the pelvic floor muscles using a probe.
    • Suitable for urinary or rectal incontinence.
    • 9 Built in programmes for ease of use.
    • 3 Customisable constant mode programmes.
    • Ability to lock the unit and records total time in use and average current.
    • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
    • Keypad with bigger buttons for ease of use.
    • Compact, light and reliable.

    Model number: ECS400A. This product is available through selected distributors who are able to provide training and support.


  • STIM

    • Dual channel: individually isolated circuits.
    • Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
    • Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
    • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current..
    • Selectable pulse width: 50 μS – 450 μS [2% accuracy].
    • Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
    • Time duration of the treatment selectable: 1 minute to 90 minutes.
    • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
    • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
    • Ramp up time 0.3 – 9.9 seconds.
    • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.Physical dimensions: 119.2 x 69 x 28.7 mmWeight: 0.07KG without battery, 0.1KG with battery.Environmental Conditions for use:
      +5 to +40 degrees Centigrade. 15-90% Humidity.Environmental conditions for storage & transport:
      -25 to +70 degrees Centigrade. 15-90% Humidity.
    • Skin electrodes: round 25 mm

      electrodes-vs2
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 25 mm dia – round
      • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: general use
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: round 30 mm

      electrodes-vs30
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 30 mm dia – round
      • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: general use
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: round 50 mm

      electrodes-vs50
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 50 mm dia – round
      • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: general use, as alternative to popular square shape of 50x50mm
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: 50 x 50 mm

      electrodes-vs5050
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 50 x 50 mm – rectangular
      • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: general use, this size is the most popular
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: 90 x 40 mm

      electrodes-vs9040
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 90 x 40 mm – rectangular
      • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: 90 x 50 mm

      electrodes-vs9050
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 90 x 50 mm – rectangular
      • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: large muscles or TENS placing on the lower back
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Skin electrodes: 100 x 50 mm

      electrodes-vs10050
      Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

      • Size: 100 x 50 mm – rectangular
      • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
      • Recommended for: large muscles or TENS placing on the lower back
      • For single Patient use only!

      Materials & Specifications

      • Soft white cloth backing, suitable for most areas of the body
      • High quality hydrogel and conductive carbon film
      • Water based gel makes it skin friendly and allergy free (exclusions possible)
      • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
      • Latex free
      • CE marked

      Lead wire – dual conductor

      wire-lw102-7169
      Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

      • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
      • cable length: 1.25 mm
      • Improved features: thicker, more flexible cable jacket.

      Materials & Specifications

      • Inner wire – copper
      • Outer jacket and plugs – PVC
      • Latex free

      Vaginal Probe– PR-02A-2

      vaginal probe
      Vaginal electrode for Pelvic floor electrical stimulation or EMG Biofeedback

      • Terminations: for 2mm diameter pins
      • Dimensions: length 76 mm, diameter 28 mm
      • Weight: 30g
      • cable length: 20cm
      • CE Marked

      Materials & Specifications

      • Medical Grade Plastic
      • Gold plated electrodes to eliminate nickel intolerance
      • Latex free
