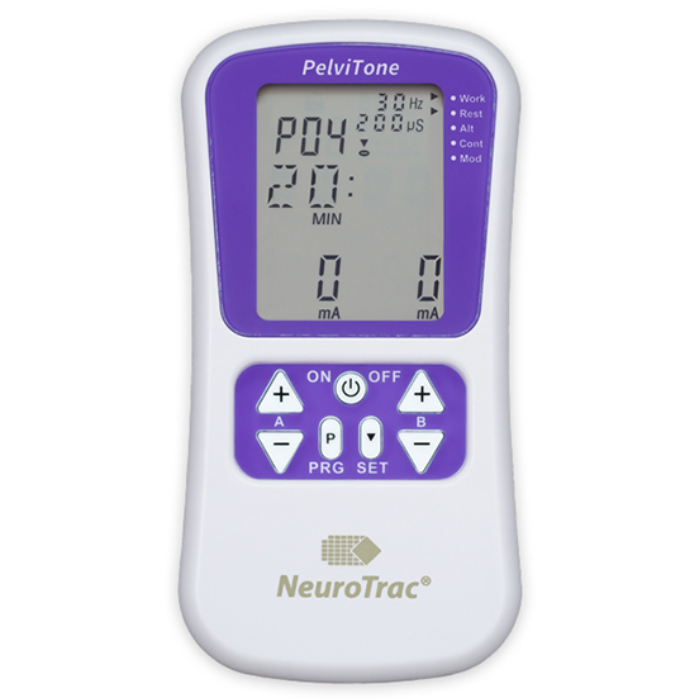

NeuroTrac® PelviTone

Category:

Product Description


  • Dual channel PelviTone device has all the features of Continence device, plus:

    • Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters;
    • Stronger symmetrical stimulation with the reduced Pulse Width : 50 – 330 μS.
    • Three Custom programmes plus 11 Preset Continence programmes.
    • Lock mode function to measure the home compliance (mA and time used)
    • NeuroTrac™ VeriProbe – The Vaginal probe for EMG and Electrostimulation.

    Read more: PDF


  • STIM

    • Dual channel: individually isolated circuits.
    • Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
    • Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
    • Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
    • Selectable pulse width: 50 μS – 330 μS [2% accuracy].
    • Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
    • Time duration of the treatment selectable: 1 minute to 90 minutes.
    • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
    • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
    • Ramp up time 0.1 – 9.9 seconds.
    • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.

    Physical dimensions: 134 x 69 x 29.7 mm.
    Weight: 0.18 KG with battery.

    Environmental Conditions for use:
    +5 to +40 degrees Centigrade. 0-90% Humidity.

    Environmental conditions for storage & transport:
    -25 to +70 degrees Centigrade. 0-90% Humidity.

  • Skin electrodes: round 25 mm

    electrodes-vs2
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 25 mm dia – round
    • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 30 mm

    electrodes-vs30
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 30 mm dia – round
    • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 50 mm

    electrodes-vs50
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 mm dia – round
    • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, as alternative to popular square shape of 50x50mm
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 50 x 50 mm

    electrodes-vs5050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 x 50 mm – rectangular
    • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, this size is the most popular
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 40 mm

    electrodes-vs9040
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 40 mm – rectangular
    • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 50 mm

    electrodes-vs9050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 50 mm – rectangular
    • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 100 x 50 mm

    electrodes-vs10050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 100 x 50 mm – rectangular
    • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Lead wire – dual conductor

    wire-lw102-7169
    Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

    • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.25 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free

    Vaginal Probe– PR-02A-2

    vaginal probe
    Vaginal electrode for Pelvic floor electrical stimulation or EMG Biofeedback

    • Terminations: for 2mm diameter pins
    • Dimensions: length 76 mm, diameter 28 mm
    • Weight: 30g
    • cable length: 20cm
    • CE Marked

    Materials & Specifications

    • Medical Grade Plastic
    • Gold plated electrodes to eliminate nickel intolerance
    • Latex free
