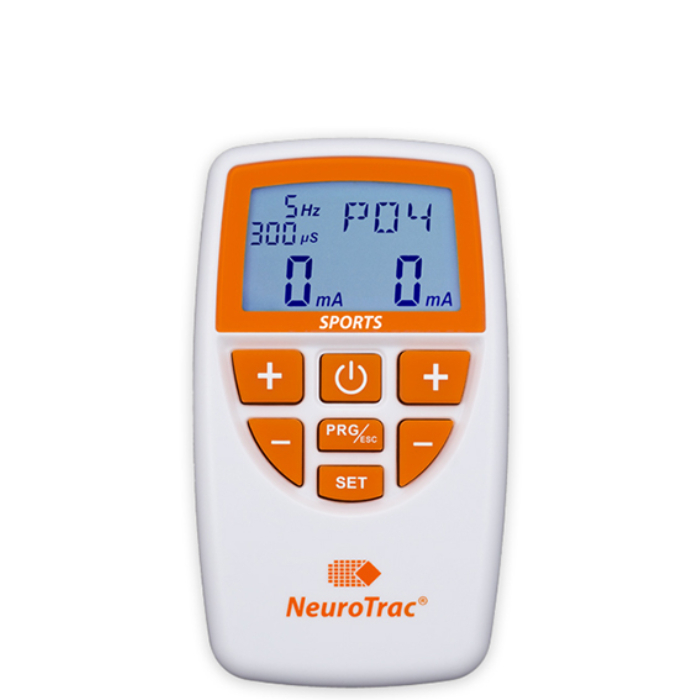

NeuroTrac® Sports

Category:

Product Description

    • Digital Dual Ch annel Stimulator (NMES) Suitable for Sports, muscle toning, muscle rehabilitation and cellulite reduction
    • 15 Built in Sports programmes for: Warm up, Capillary, Toning- Endurance,- Calming the muscle.- Resistance force output treatment for activities which require prolonged and high activity muscle force: Cycling, Rowing, middle distance Running etc.- Maximum force output treatment to produce maximum muscle force output and muscle bulk: weight lifting, judo, ball games, sprint running etc
    • 3 Customisable constant mode programmes
    • Lock mode function to measure and record the home compliance (mA and total time used).
    • Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
    • Keypad with bigger buttons for ease of use.
    • Compact, light and reliable.

    Model number: ECS401A. This product is available through selected distributors who are able to provide training and support.


  • STIM

    • Dual Channel Digital STIM unit
    • 15 Built in programmes
    • 3 Customisable programmes
    • LCD displays Intensity, Rate, Pulse Width, Time and programme Mode
    • Time setting up to 90 minutes
    • Constant Current (extends battery life)
    • Work / Rest periods from 2 – 99 seconds
    • Range: Rate: 2 Hz – 100 Hz, Pulse Width: 50 μS to 450 μS
    • Alternating and Synchronous between channel A and B
    • Lock mode function for recording time in use and locking the units parameters
    • Automatic switch off after 4 minutes if unit is not in use
    • User friendly

    Physical dimensions: 119.2 x 69 x 28.7 mm

    Weight: 0.07KG without battery, 0.1KG with battery.

    Environmental Conditions for use:
    +5 to +40 degrees Centigrade. 15-90% Humidity.

    Environmental conditions for storage & transport:
    -25 to +70 degrees Centigrade. 15-90% Humidity.

  • Skin electrodes: round 25 mm

    electrodes-vs2
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 25 mm dia – round
    • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 30 mm

    electrodes-vs30
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 30 mm dia – round
    • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 50 mm

    electrodes-vs50
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 mm dia – round
    • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, as alternative to popular square shape of 50x50mm
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 50 x 50 mm

    electrodes-vs5050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 x 50 mm – rectangular
    • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, this size is the most popular
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 40 mm

    electrodes-vs9040
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 40 mm – rectangular
    • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 50 mm

    electrodes-vs9050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 50 mm – rectangular
    • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 100 x 50 mm

    electrodes-vs10050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 100 x 50 mm – rectangular
    • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Lead wire – dual conductor

    wire-lw102-7169
    Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

    • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.25 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free
