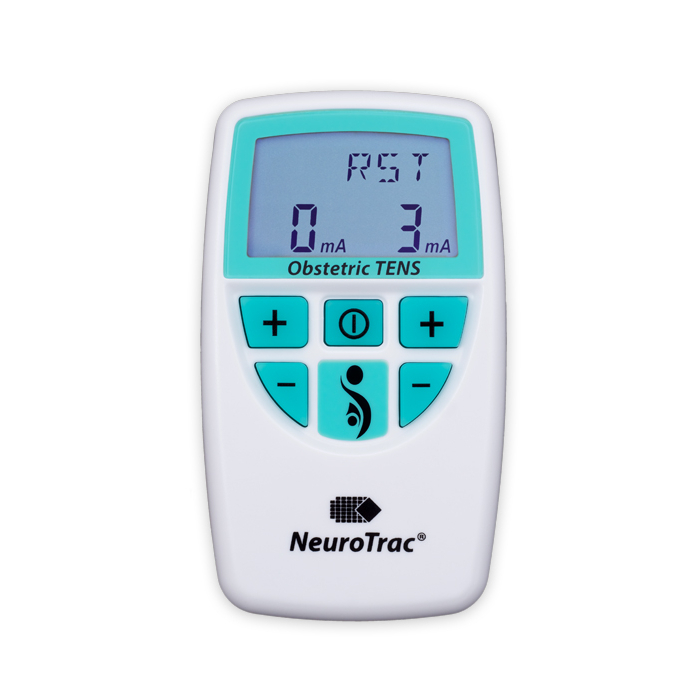

Product Description
-
- Dual channel Digital Obstetric TENS unit for simple and non-invasive method to decrease pelvic pain when in labour.
- Dedicated Labour Pain programme for use with Remote Boost switch for additional pain control at times of intense pain.
- No known side effects for mother or baby
- Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions.
- Keypad with bigger buttons for ease of use.
- Compact, light and reliable
Model number: ECS310A. This product is available through selected distributors who are able to provide training and support.
TENS- Dual channel: individually isolated circuits.
- Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
- Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
- Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
- Pulse width: 220μS [2% accuracy].
- Pulse Rate: 90Hz (Continuous mode) [2% accuracy].
- Mode: Continuous (Boost mode).
- Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz, repeating twice every second (Rest mode).
- Ramp up Time: 0.8 seconds from Rest to Boost.
- Time duration: continuous until switched off.
- Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
- If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
- Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
Physical dimensions: 108 x 62 x 23 mm.
Weight: 0.07KG without battery, 0.1KG with battery.
Environmental Conditions for use:
+5 to +40degrees Centigrade. 15-90% Humidity.Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-90% Humidity.-
Skin electrodes: round 25 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 25 mm dia – round
- Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: general use
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: round 30 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 30 mm dia – round
- Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: general use
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: round 50 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 50 mm dia – round
- Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: general use, as alternative to popular square shape of 50x50mm
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: 50 x 50 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 50 x 50 mm – rectangular
- Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: general use, this size is the most popular
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: 90 x 40 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 90 x 40 mm – rectangular
- Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: 90 x 50 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 90 x 50 mm – rectangular
- Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: large muscles or TENS placing on the lower back
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Skin electrodes: 100 x 50 mm
Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback- Size: 100 x 50 mm – rectangular
- Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
- Recommended for: large muscles or TENS placing on the lower back
- For single Patient use only!
Materials & Specifications
- Soft white cloth backing, suitable for most areas of the body
- High quality hydrogel and conductive carbon film
- Water based gel makes it skin friendly and allergy free (exclusions possible)
- Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
- Latex free
- CE marked
Lead wire – dual conductor
Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback- Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
- cable length: 1.25 mm
- Improved features: thicker, more flexible cable jacket.
Materials & Specifications
- Inner wire – copper
- Outer jacket and plugs – PVC
- Latex free
